Installation

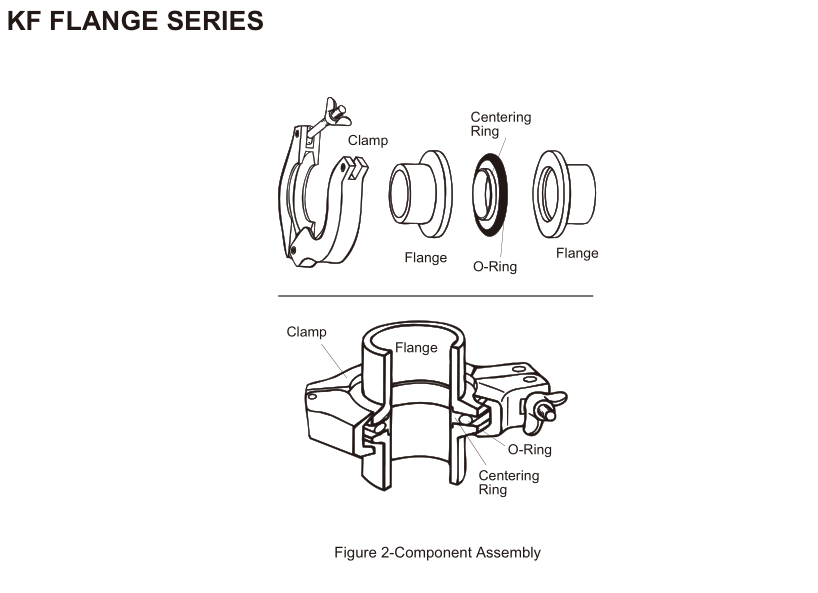

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
Vacuum fittings

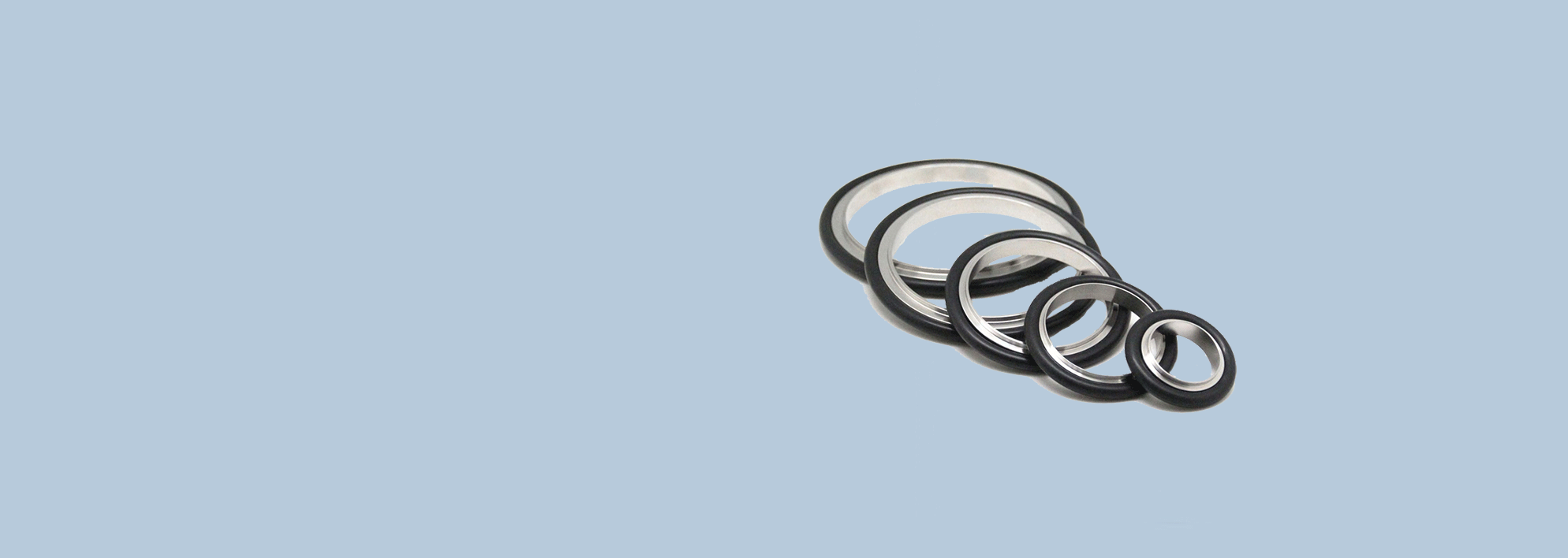

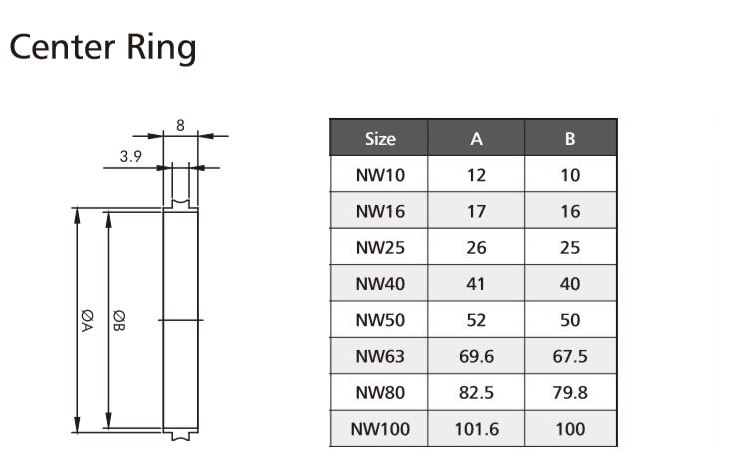

KF Center Ring+O-Ring
Center Ring+O-Ring, find complete details about Center Ring+O-Ring - QiiMii Stainless Supplier
Specifications
Vacuum fittings - KF Center Ring+O-Ring
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
